KRP17X

0
2090

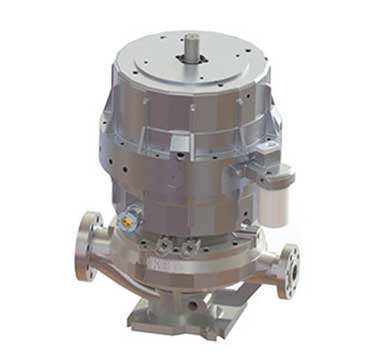

High Speed Integrally Geared Single Stage Centrifugal Vertical Inline Pump

API 610 11th edition OH6 type centrifugal pump. This high speed integrally geared single stage pump, offers maximum life and reliability as well as ease of maintenance. Highly engineered for industrial or heavy duty applications.

Specifications

HeadUp to 1400 m (Up to 4,593 ft)
Flow Rate5 Up to 200 m3/hr
Max. Power Required300 kW (400 HP)
Standard API Plans11, 12, 13, 21, 23, 31, 32, 41, 52, 53A, 53B, 54, 61, 62
Max. Suction Pressure30 bar (435 psi)
Speed Range10,300 Up to 18,500 RPM
Mounting ConfigurationVertical
Suction and Discharge Flanges Size3”x2”, 6″x4″, 8″x4″
Flanges Range600#, 900# or 1500# Optional According to customer demand(ANSI RF or RTJ)
Max Debris Particle Size380 microns
Temp Range-49 up to 200 ℃

Application

Urea Production

  • Carbamate Recycle
  • Ammonia Injection

Petrochemical

  • Resin Charge
  • LPG Pipeline
  • Transfer Service
  • PTA Slurry
  • Reactor Charge
  • Oil Production

Water Injection

  • LPG Injection
  • Chemical Injection
  • Liquid CO2 Injection

Industrial

  • High Pressure Spray
  • Waste Water Disposal
  • Boiler Feed
  • Sealing system

Cutway

General Arrangment

Pump Exploded View

G.B Exploded View
