High Speed Integrally Geared Single Stage Centrifugal Vertical Inline Pump
API 610 11th edition OH6 type centrifugal pump. This high speed integrally geared single stage pump, offers maximum life and reliability as well as ease of maintenance. Highly engineered for industrial or heavy duty applications.
Specifications
| Head | Up to 900 m (up to 2,953 ft) |
| Flow Rate | 2 m3/hr Up to 50 m3/hr(50 Hz) |
| Max. Power Required | 37 kW (50 HP) |
| Standard API Plans | 11, 12, 13, 21, 23, 31, 32, 41, 52, 53A, 53B, 54, 61, 62 |
| Max. Suction Pressure | 30 bar (435 psi) |
| Speed Range | 5,000 to 15,000 rpm |
| Mounting Configuration | Vertical |
| Suction and Discharge Flanges | 3”x2”, 600#, or 900# Optional (ANSI RF or RTJ) |
| Max Debris Particle Size | 380 microns |
| Temp Range | -49 up to 200 ℃ |
Application
Urea Production
- Carbamate Recycle
- Ammonia Injection
Petrochemical
- Resin Charge
- LPG Pipeline
- Transfer Service
- PTA Slurry
- Reactor Charge
- Oil Production
Water Injection
- LPG Injection
- Chemical Injection
- Liquid CO2 Injection
Industrial
- High Pressure Spray
- Waste Water Disposal
- Boiler Feed
- Sealing system
Cutway
General Arrangment
Pump Exploded View
G.B Exploded View

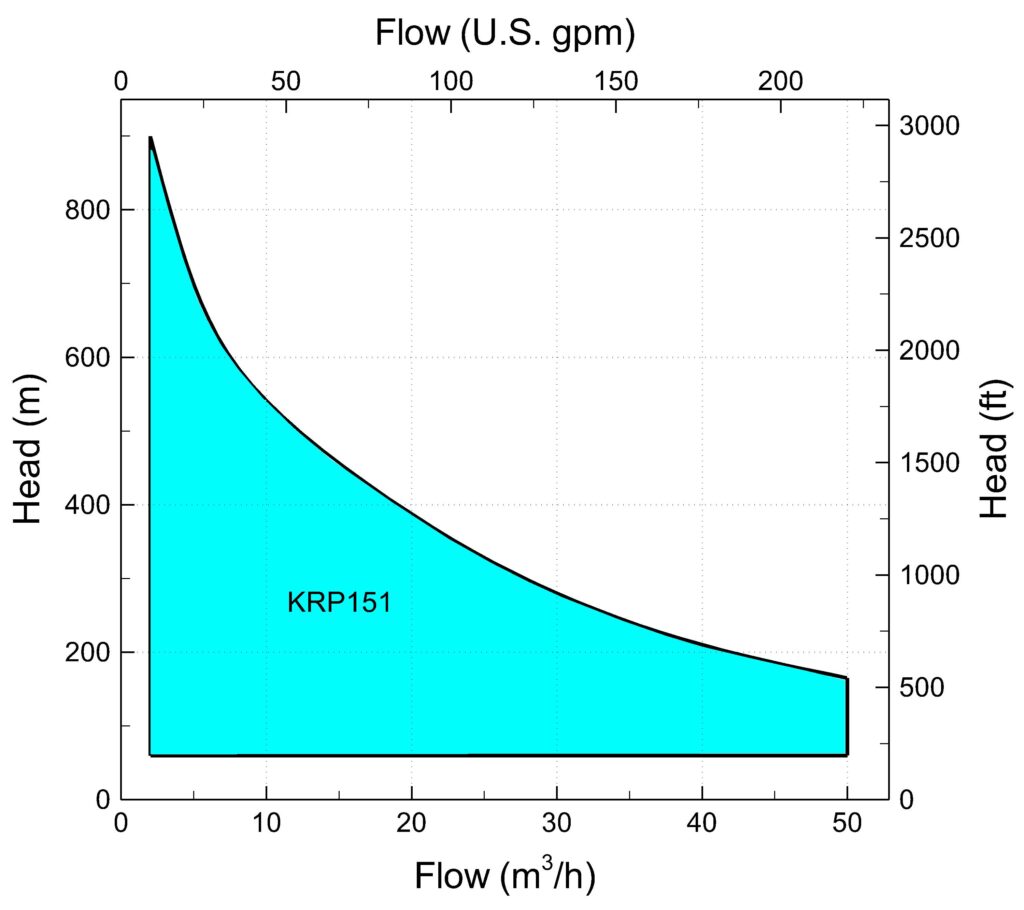

Performance Range
